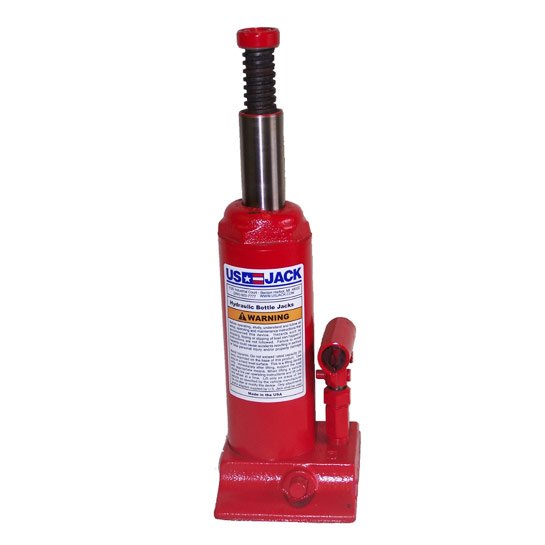

Hi-Range Hydraulic Bottle / Hand Jacks (3, 5, 8, and 12 Ton Capacity)

Higher Standard Lifting

Offering the same quality and strong build as our standard hydraulic jacks, the Hi-Range Hydraulic Bottle / Hand Jacks also provide more lifting height by up to 33%. Even with this extra lift, the Hi-Range model still offers durability under constant use that can last you for a lifetime, making it the perfect jack for applications similar to the standard, such as heavy-duty trucks, military and defense vehicles (FMTV, LMTV, etc.) and more. Give yourself the extra few inches you need with our Hi-Range Jack.


Taller Collapsed Height: Up to 33% more lifting height over standard hydraulic models. Hi-Range models feature larger rams, larger bases and larger pumps than the comparable standard model.

Ductile Iron Castings: Heavy-duty 65-45-12 Ductile Iron Castings for both the base and head cap.

Electroless Nickel Plated Ram: Electroless nickel plated steel ram & steel pump piston prevent and protect against rust and corrosion.

Stability: Large base provides wide stance and positive load support.

Safety Valve: Safety fluid bypass system prevents the user from overloading/ damaging the jack so it cannot be used beyond the ASME/ PASE load-limiting standard.

ASME PASE-2014 Standards: 50% safety overload factor per ASME/ PASE hydraulic bottle jack standards.

Ram Stop: Ram stop ring prevents ram from being overextended.

Operating Range: Wide Temperature Operating Range due to high quality USA made seals, u-cups, back-ups and O-rings. All models have an operating range of -40 degrees Fahrenheit to +200 degrees Fahrenheit.

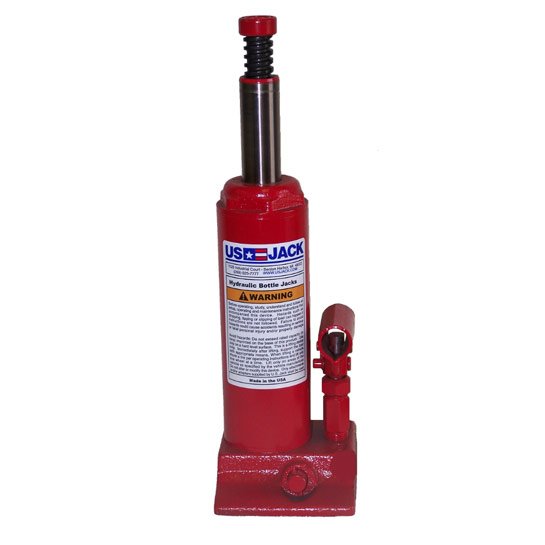

Shop on GSA Advantage: 3-Ton Model (D-51011)

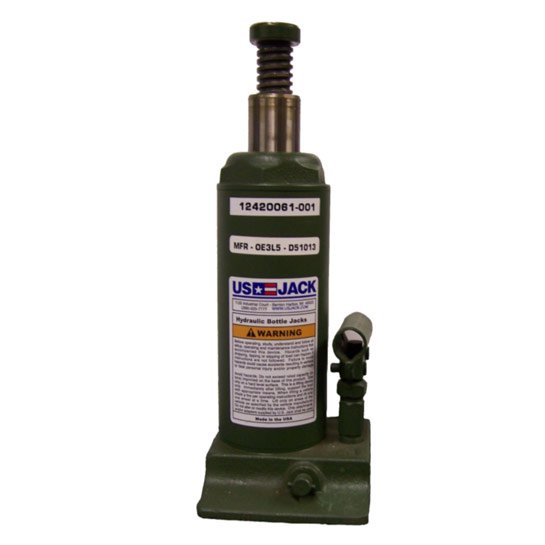

Shop on GSA Advantage: 8-Ton Model (D-51013)

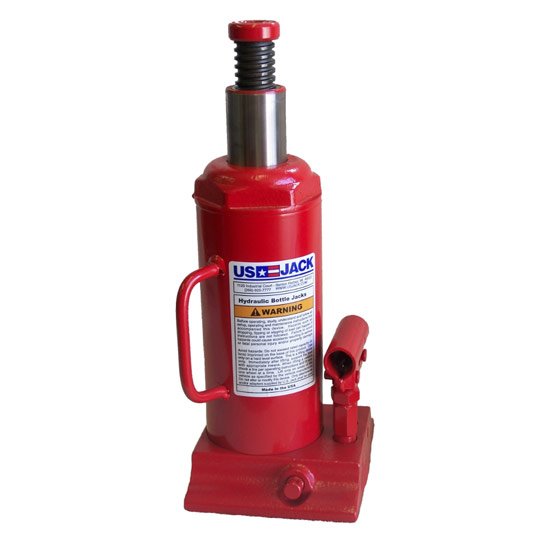

Shop on GSA Advantage: 12-Ton Model (D-51014)

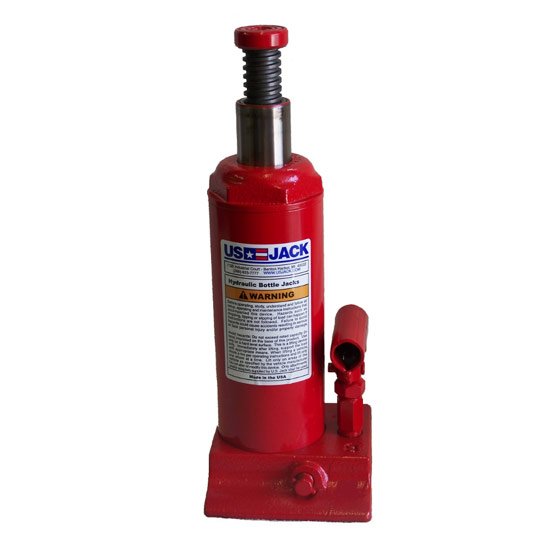

Hi-Range Hydraulic Bottle/ Hand Jacks 8 Ton
