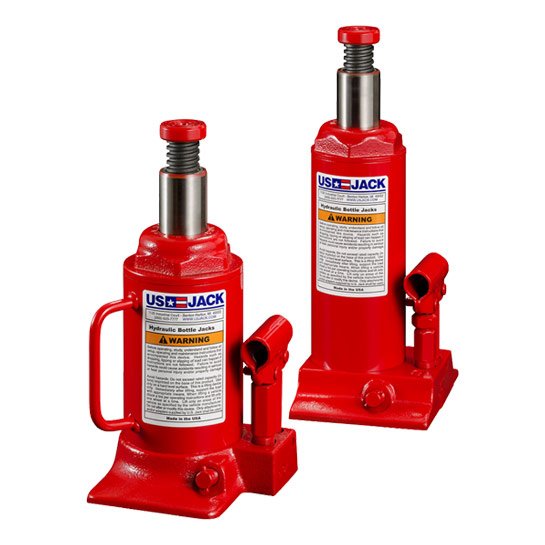

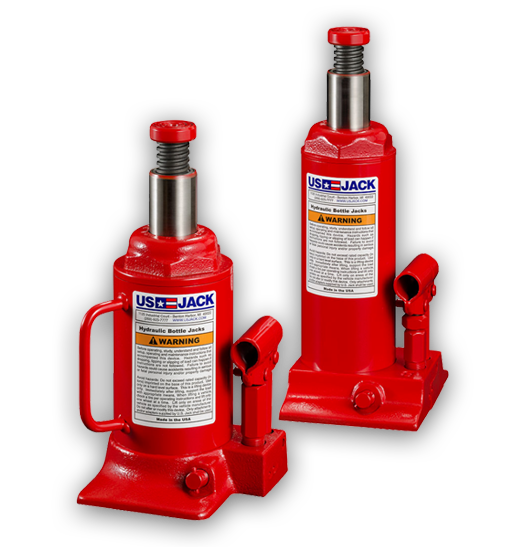

Standard Hydraulic Bottle / Hand Jacks (3, 5, 8, 12, 20, 30, and 60 Ton Capacity)

Durable Hydraulic Jacks

Our heavy-duty, professional quality, 100% USA made hydraulic bottle / hand jacks are built for service under constant use and durable enough to last a lifetime. For vehicles of all types and sizes, our jacks have been used on heavy-duty trucks, military and defense vehicles (FMTV, LMTV, etc.), farm equipment, building construction, emergency vehicles, and/or in conjunction with original equipment manufacturers of various products.


Ductile Iron Castings: Heavy-duty 65-45-12 Ductile Iron Castings for both the base and head cap.

Electroless Nickel Plated Ram: Electroless nickel plated steel ram & steel pump piston prevent and protect against rust and corrosion.

Stability: Large base provides wide stance and positive load support.

Safety Valve: Safety fluid bypass system prevents the user from overloading/ damaging the jack so it cannot be used beyond the ASME/ PASE load-limiting standard.

ASME PASE-2014 Standards: 50% safety overload factor per ASME / PASE hydraulic bottle jack standards.

Ram Stop: Ram stop ring prevents ram from being overextended.

Operating Range: Wide Temperature Operating Range due to high quality USA made seals, u-cups, back-ups and O-rings. All models ranging from 5-Ton capacity to 20-Ton capacity have an operating range of -40 degrees Fahrenheit to +200 degrees Fahrenheit. All other models have an operating range of -25 degrees Fahrenheit to +200 degrees Fahrenheit.

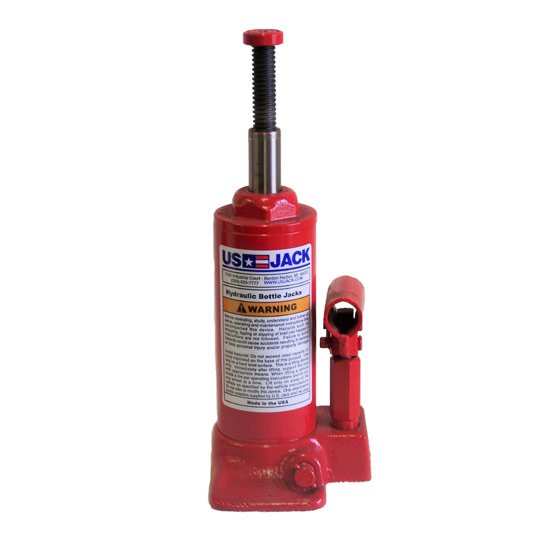

Shop on GSA Advantage: 3-Ton Model (D-51122)

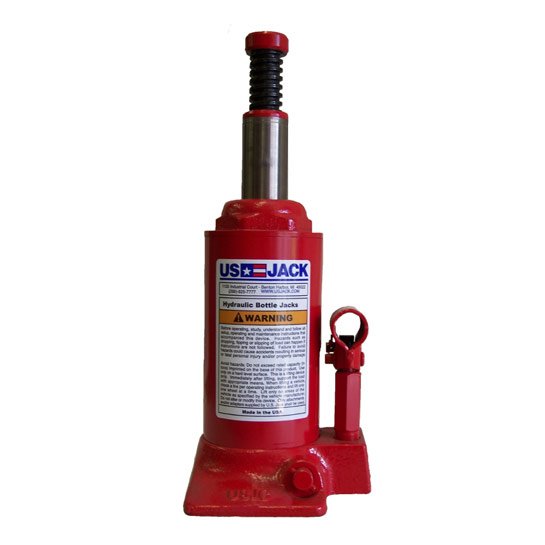

Shop on GSA Advantage: 8-Ton Model (D-51124)

Shop on GSA Advantage: 12-Ton Model (D-51125)

Shop on GSA Advantage: 20-Ton Model (D-51126)

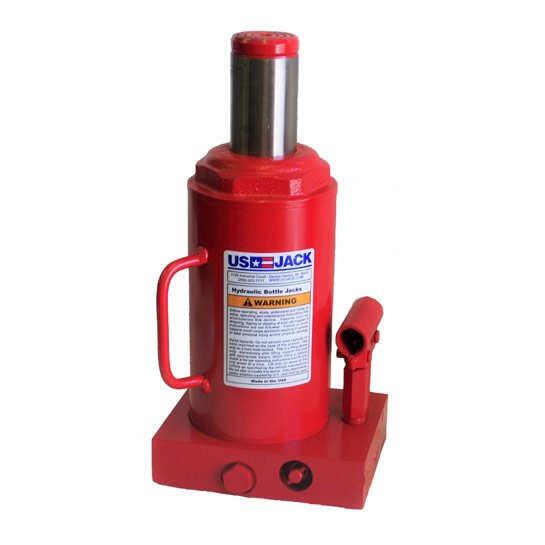

Shop on GSA Advantage: 30-Ton Model (D-51127)

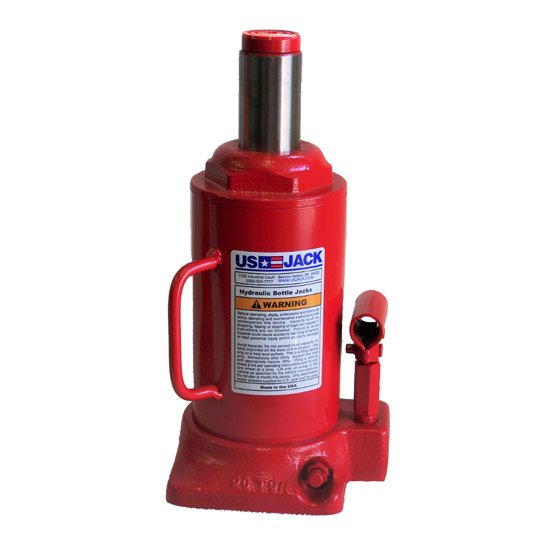

Standard Hydraulic Bottle/ Hand Jack 20 Ton
