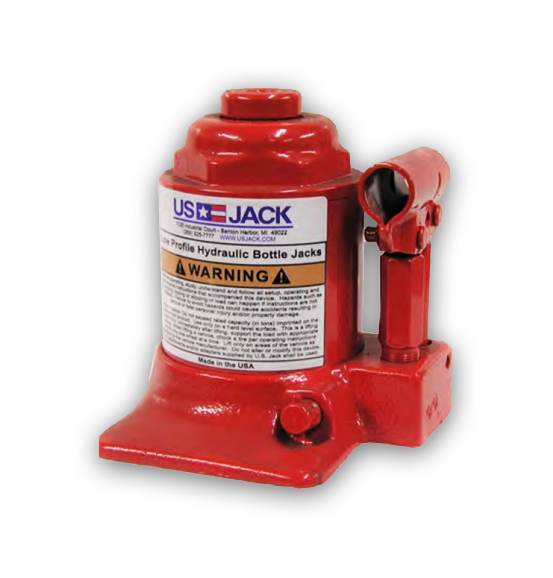

Short Hydraulic Bottle / Hand Jacks (12 and 20 Ton Capacity)

Low Clearance Hydraulic Jacks

Our short hydraulic jacks, like our standard line, are heavy-duty, professional quality, 100% USA made hydraulic bottle / hand jacks that are built for service under constant use and are durable enough to last a lifetime.  Designed for low clearance vehicles, farm equipment, building construction, emergency vehicles, and / or in conjunction with original equipment manufacturers for various low clearance products.


Heavy-Duty: Heavy-duty 65-45-12 ductile iron castings for both the base and head cap of each model.

Electroless Design: Electroless nickel plated steel ram & steel pump piston prevent and protect against rust.

Long Lifespan: Machined base castings have smooth surfaces and tight tolerances to increase longevity.

Stable Support: Large base provides wide stance and positive load support.

Safety Overload: 50% safety overload factor per ASME / PASE hydraulic bottle jack standards.

Fluid Bypass: Safety fluid bypass system prevents the user from overloading / damaging the jack so it cannot be used beyond the ASME / PASE load-limiting standard.

Extension Protection: Ram stop ring prevents ram from being overextended.

Durable Handles: Two (2) piece (21” Long) zinc plated handle set.

Operating Range: Wide Temperature Operating Range due to high quality USA made seals, u-cups, back-ups and O-rings. All models have an operating range of -40 degrees Fahrenheit to +200 degrees Fahrenheit.

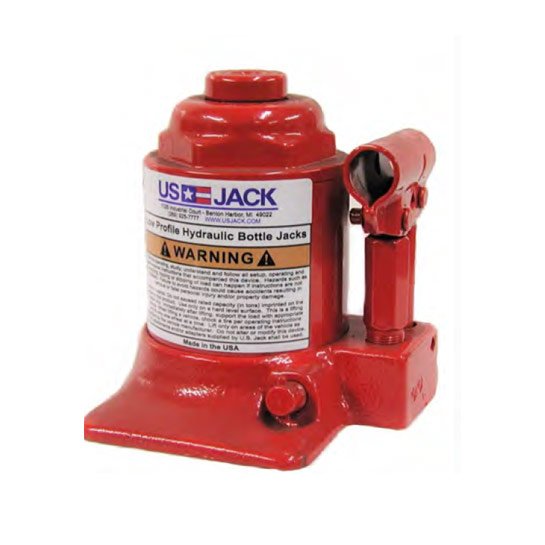

Shop on GSA Advantage: 12-Ton Model (D-51125-5)

Shop on GSA Advantage: 20-Ton Model (D-51126-5)

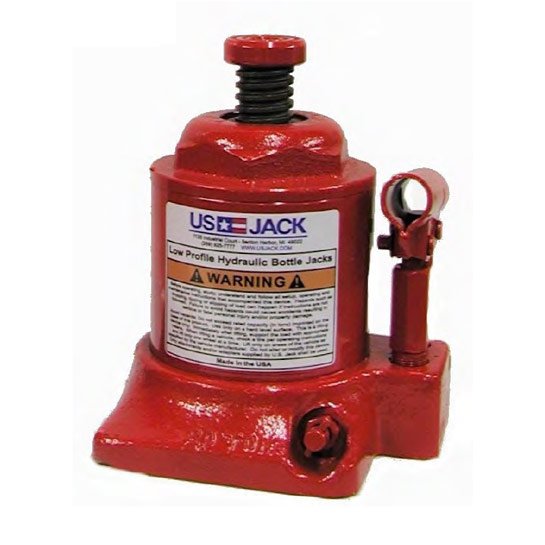

Short Hydraulic Bottle/Hand Jack - 20 Ton
